little help.

[japmadlad]

I popped a fuse for the back lights while wiring up a rear fog for the MOT. pulled what I thought was a spare 10A fuse from the bottom left of the board in drivers footwell to replace it with. Lights are all working fine but now I have no clock & the speedo isn't working. the rev counter & fuel etc still work but the speed doesn't. doesn't even register the speed on the PFC hand controller. I reckon the fuse I used was probably the speedo & clock but the diagram in the car is in japanese ( mine is a tad rusty... ok non-existant ) & the fuse diagram won't open for me on s15oc for some reason. can anyone confirm or post up the fuse diagram for me please.



[Matt_S]

Rear light fuse is under the bonnet mate. Ill get a link to the fuse guide.

I did the exact same thing on mine about 6 times last week when I wired a fog light in....

Turned out it was a faulty lamp that had a short on it :wack:



[Matt_S]

Here ya go

http://download.s15oc.com/s15_fuse_diagrams.pdf



[japmadlad]

Yeah I sorted the rear light fuse by replacing it with what I think is a spare from the footwell but now the speedo & clock don't work so maybe it wasn't a spare.



[Matt_S]

Not taking the piss, but it seasy to misread that diagram. I reckon you took the meter fuse out by mistake mate.



[japmadlad]

the diagram in the car is in japanese & I can't read it. The one on here won't open for me to look at. It looked like a spare but might not have been.



[Matt_S]

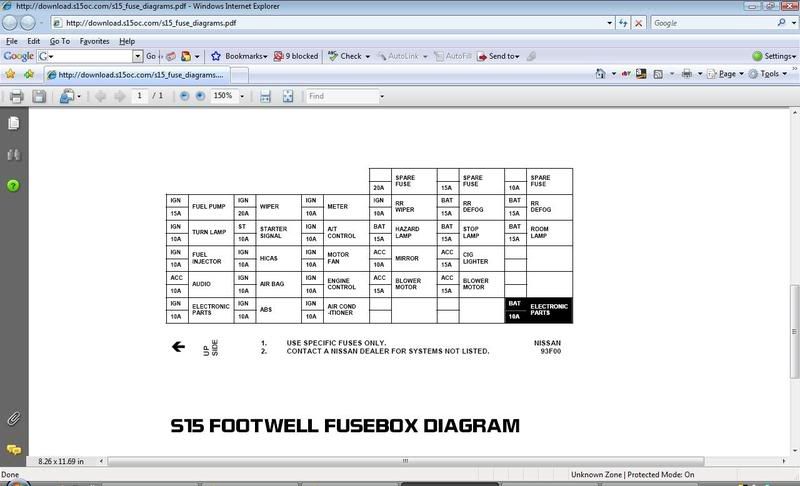

Try that!
