fmic help

[Hunts15]

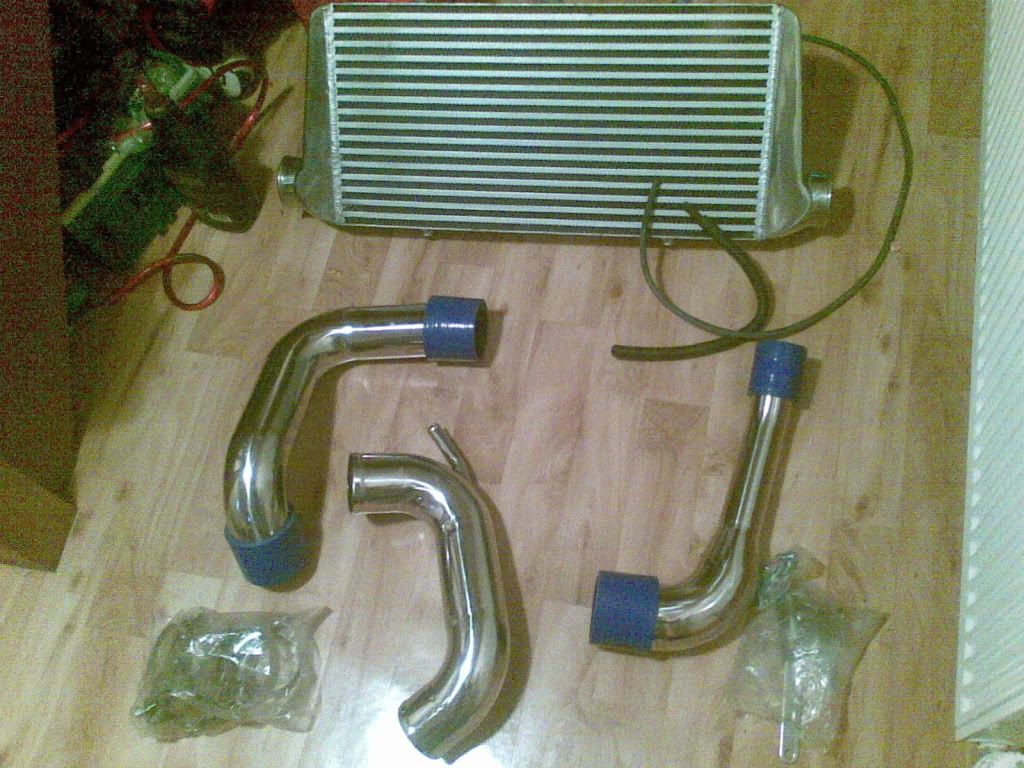

hey lads jus bought this and very confused on how to fit it got no instruction any ideas sourced the thread for fitting a fmic but still kinda lost



[sands]

pipe work dont look right to me in that photo. noting like mine anyway



[vti_coupw]

jeez man i cant really make sense out of that piping. mine was totally different anyway, hav you tried measuring them up to the engine bay in the car, im guessing its a s15 specific kit?



[raytsang]

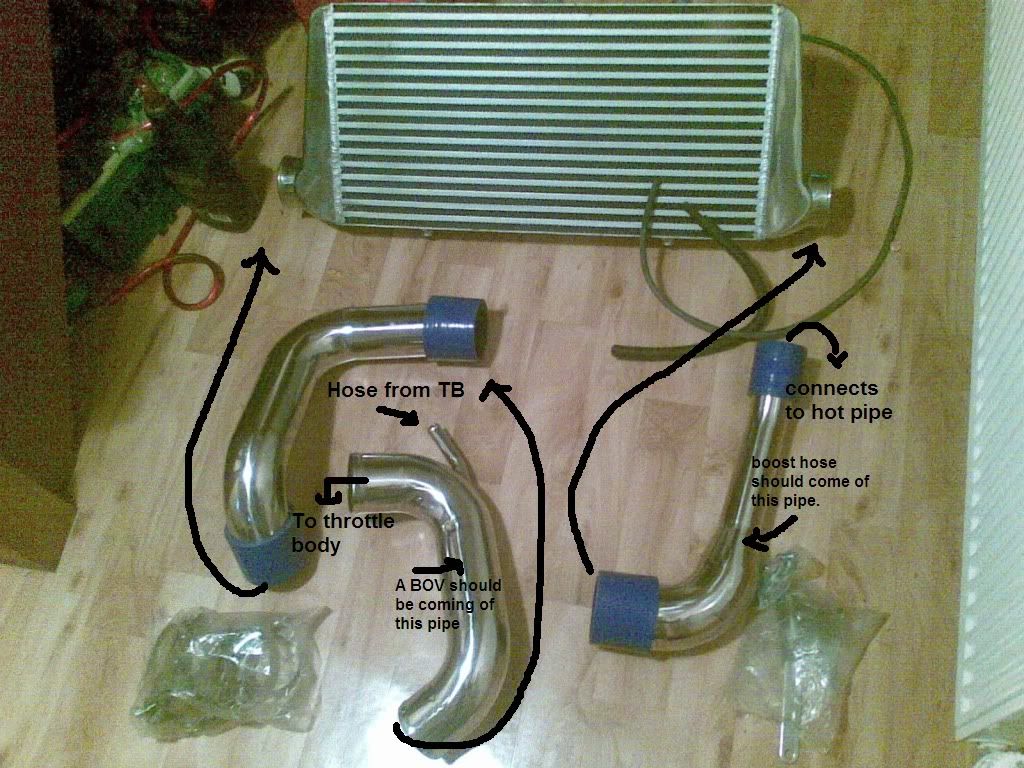

This is going by me Blitz FMIC

im not sure if your kit will have BOV or a boost connection.
looks quiet different on some of the hoses.

hope this helps.



[raytsang]

looking at it again the looks like there might be a peice missing that connects to hot pipe.....!!! on mine there is an extra 90degree elbow.



[Hunts15]

cheers for the help lads supppose just have a go and see what happens.i know i have to remove my bumper and headlights but what exactly else has to come off ????



[japmadlad]

don't need to remove headlights just bumper. Probably need to cut a hole in the battery tray for one pipe.
