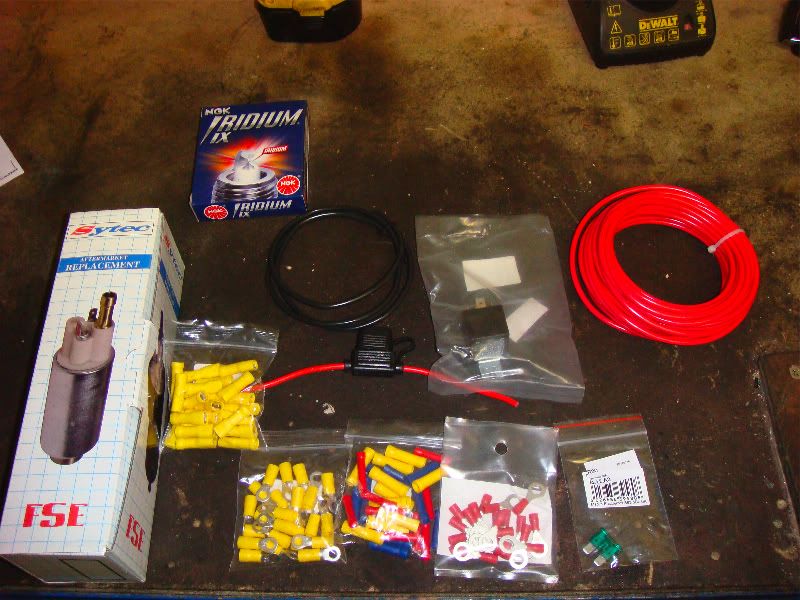

I needed to put a Walbro and grade 7 plugs in, so I ordered these bits:
I'm going to hardwire the Walbro in so that there's no voltage drop at the fuel pump which can cause problems. A lot of the S14 boys have had voltage drops and solved this by hardwiring the pump in, so I've done this anyway as a precautionary measure.

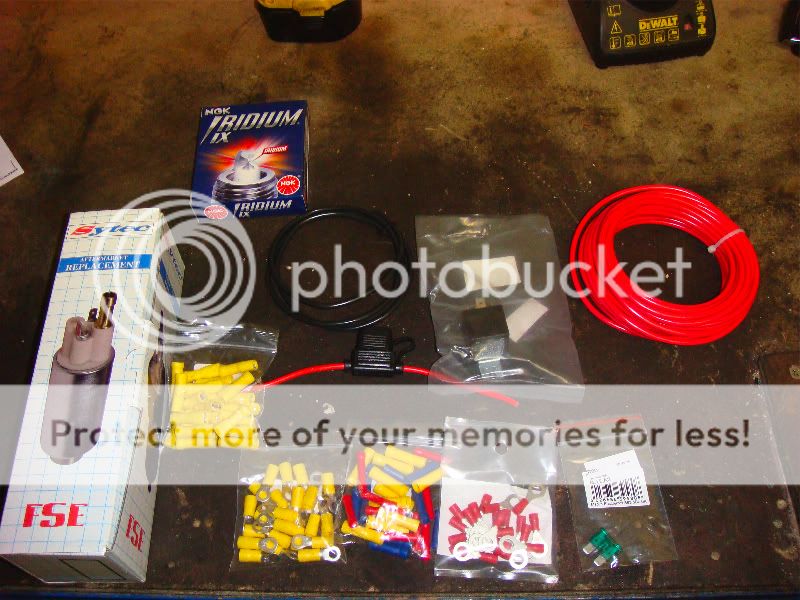

You will need the following:
30amp Relay
12AWG Gauge Wiring
Blade Fuse holder with 12AWG wiring
30amp Blade Fuse
Various Crimp Connectors (you need the yellow ones to accommodate the thickness of the wire)
I'll be routing the wiring from the battery through the fuse box as this seems like a good idea to keep the hardwired fuel pump fuse with the other fuses in the engine bay:

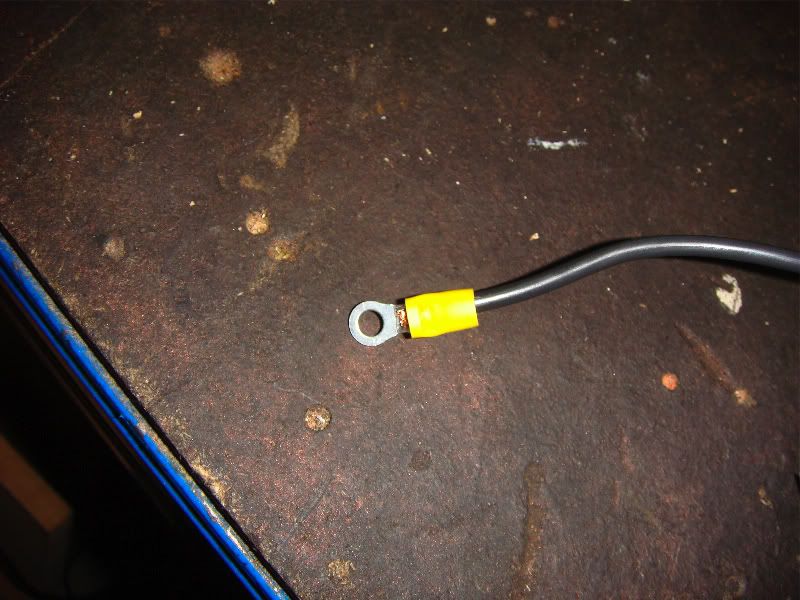

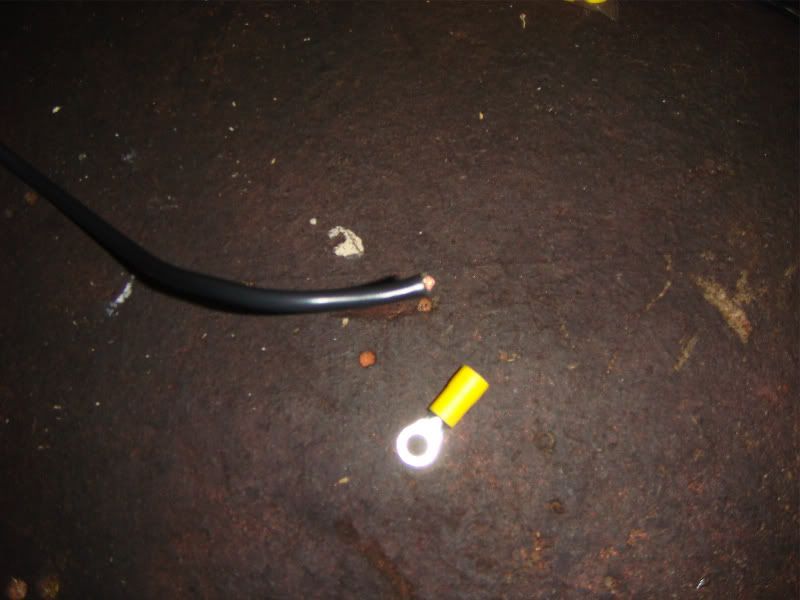

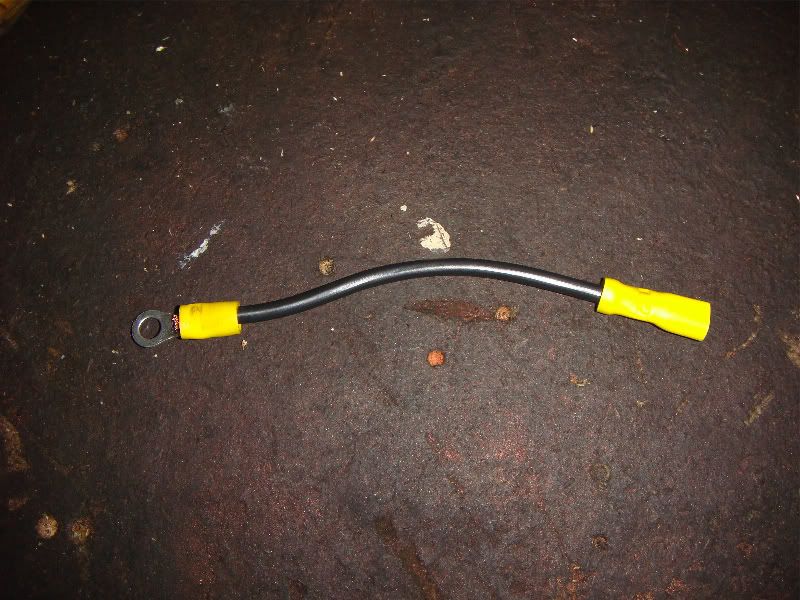

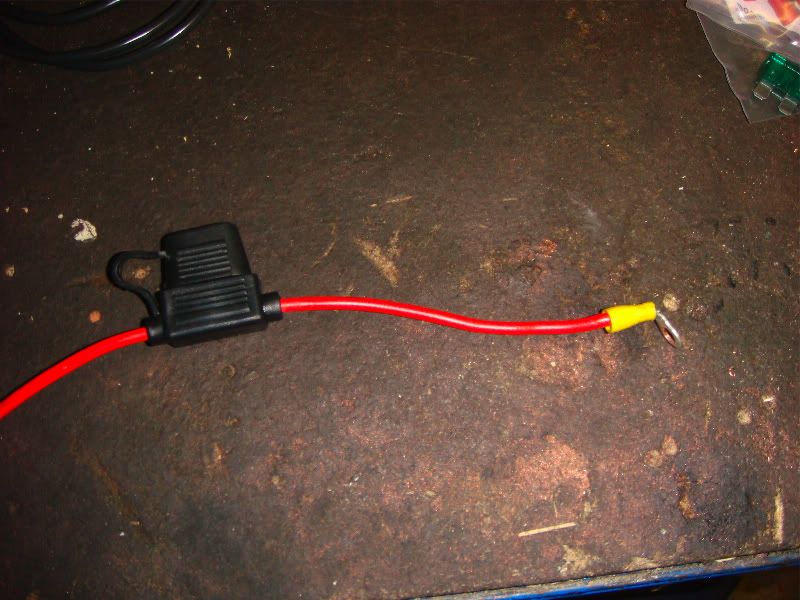

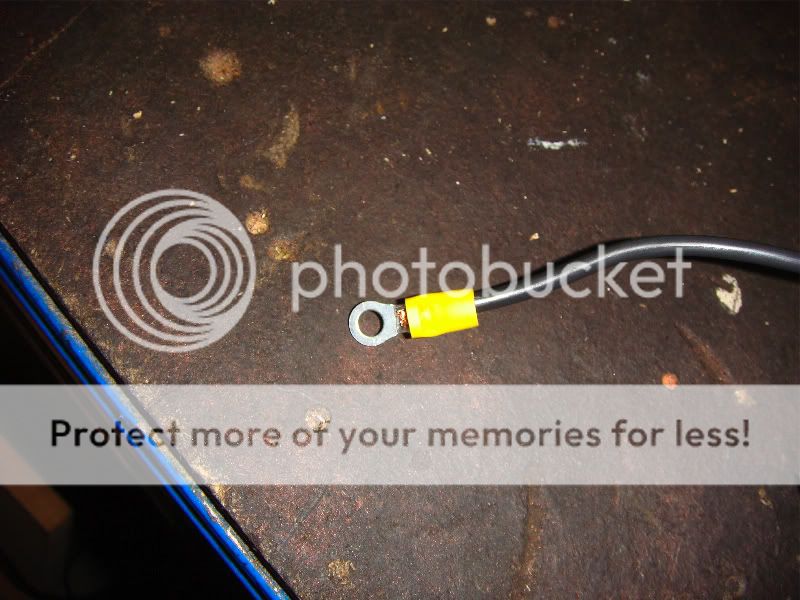

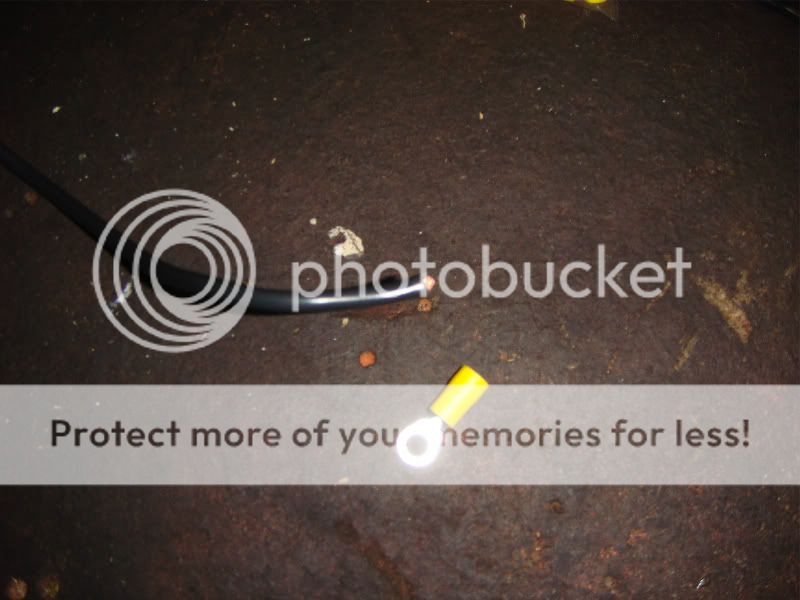

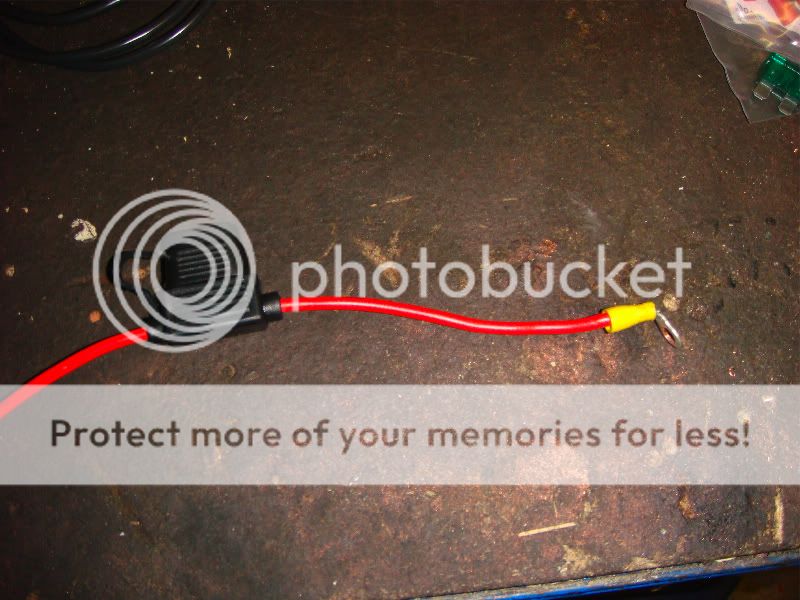

First thing is to crimp a 6.3mm ring terminal to the fuse holder. The fuse holders wires were a lot longer, but I cut them down to leave the shortest distance between the battery and the fuse:

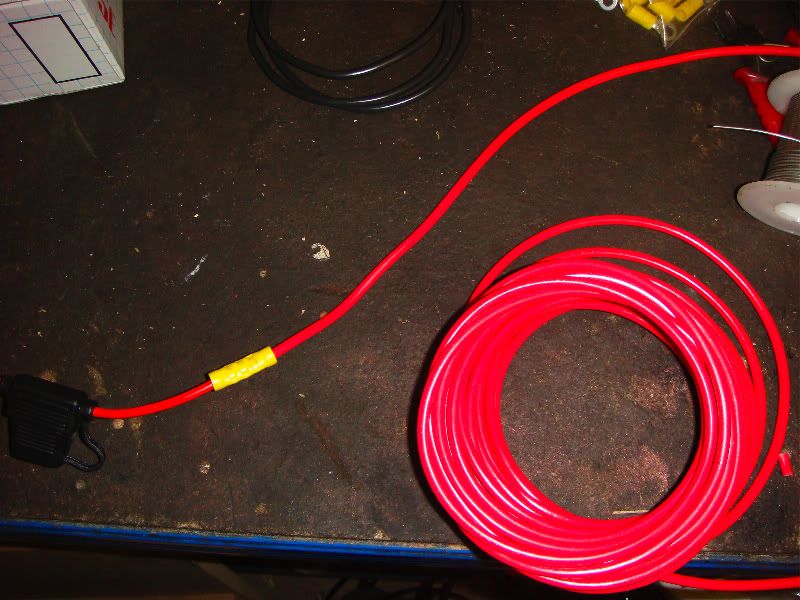

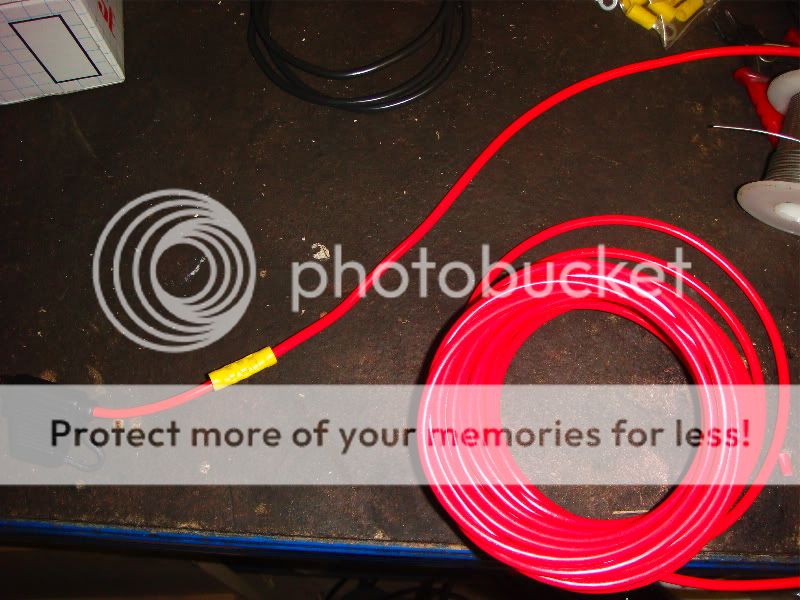

I was never a fan of using butt crimp connectors to connect wiring together, but it was impossible to solder the 12AWG wiring together as its too thick and my soldering iron isn't powerful enough to heat the entire joint to allow the solder to flow correctly. So I used butt connectors, and they are surprisingly okay to use, the joint is very firm and I can't pull it apart:

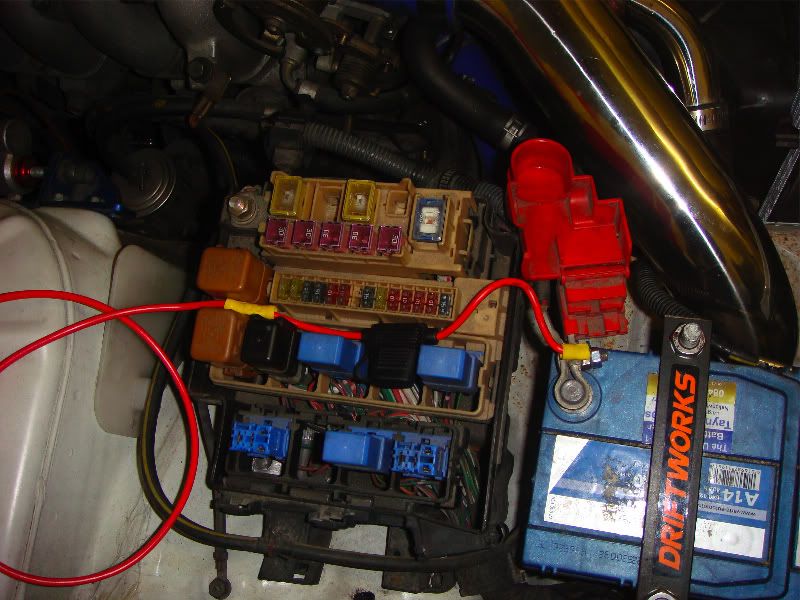

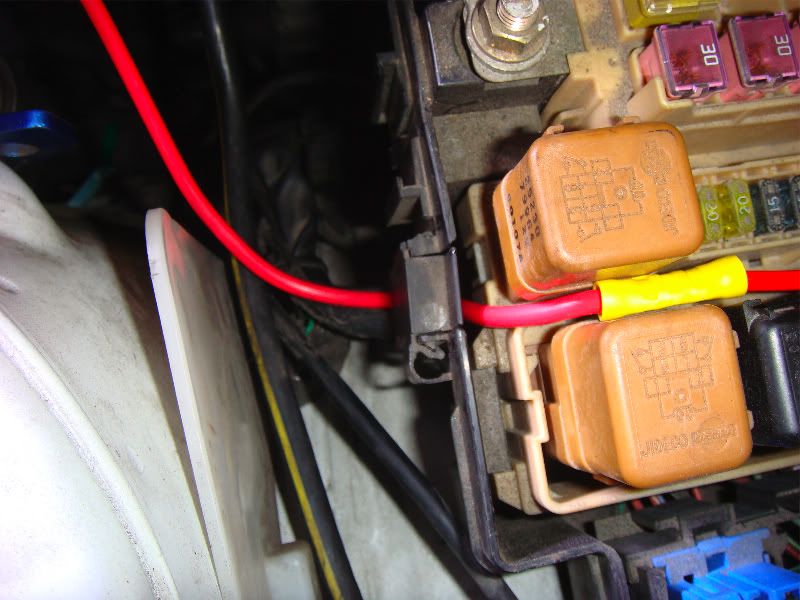

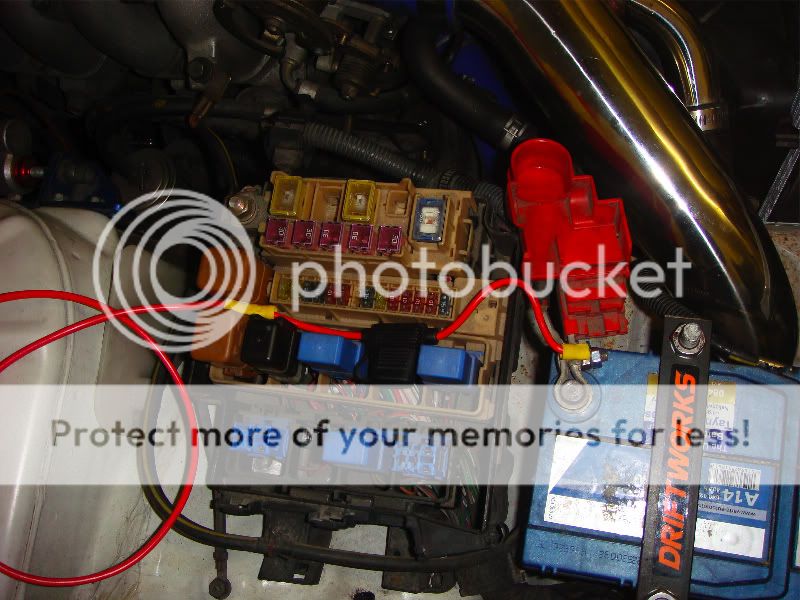

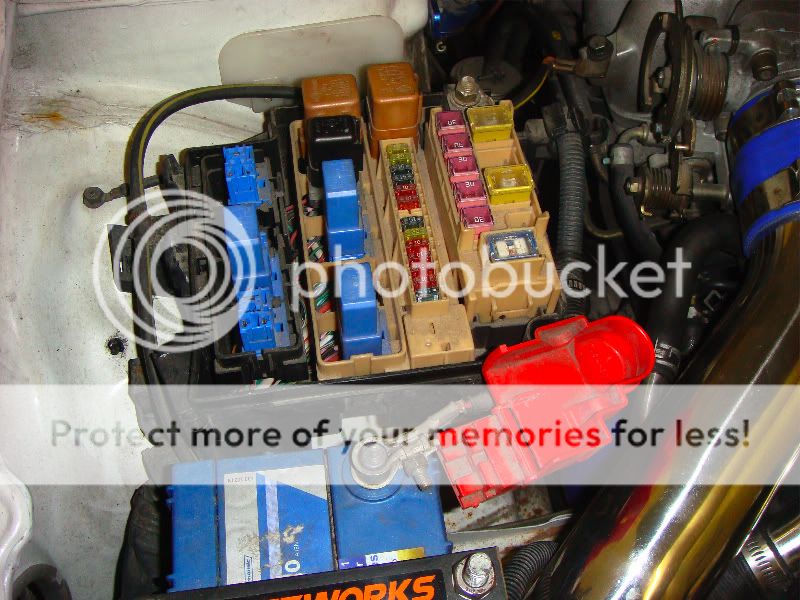

This is how I routed it through the fuse box:

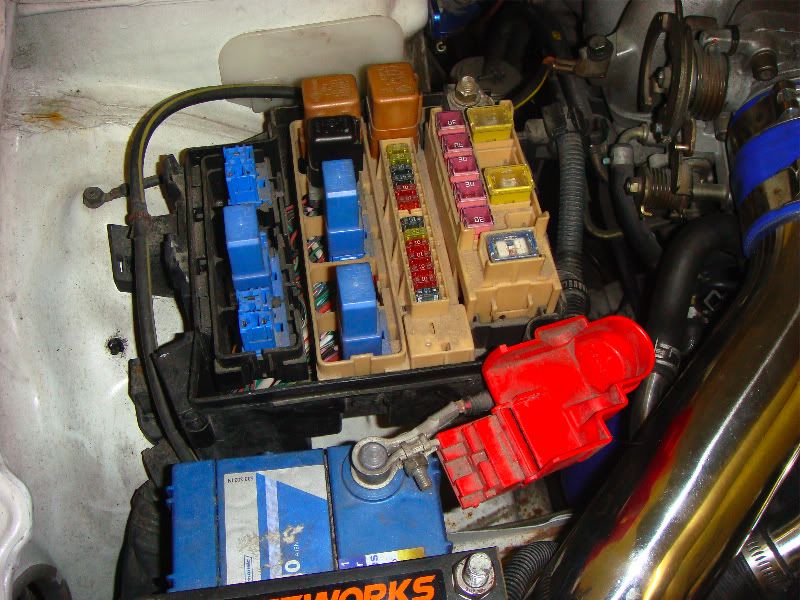

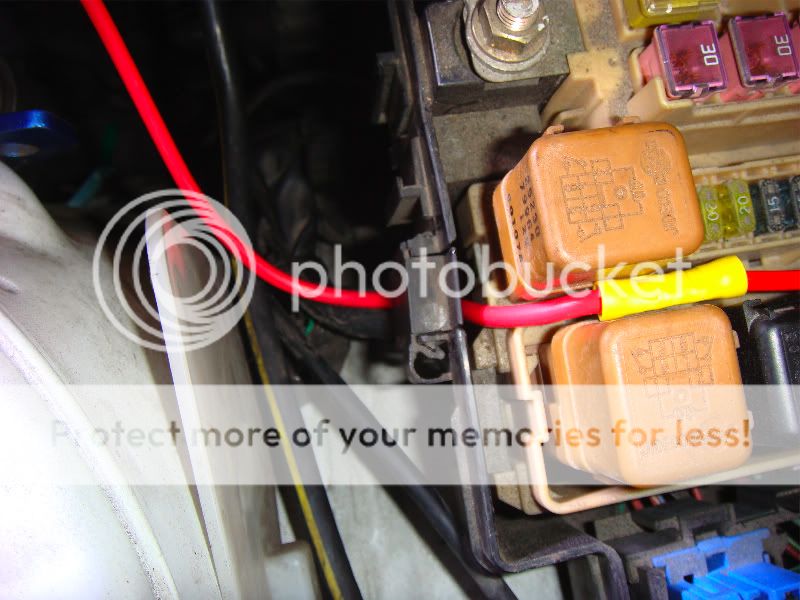

You can flip this flap open and bring the wire out without drilling holes in the fuse box:

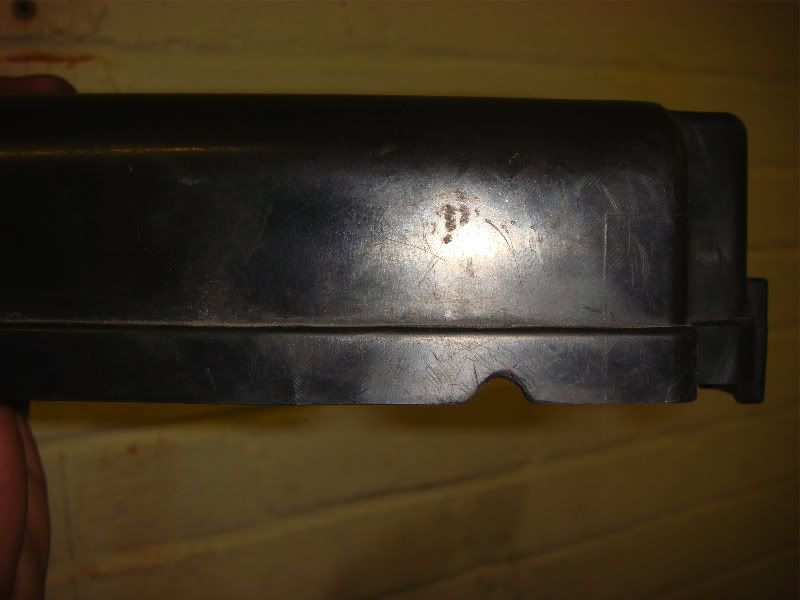

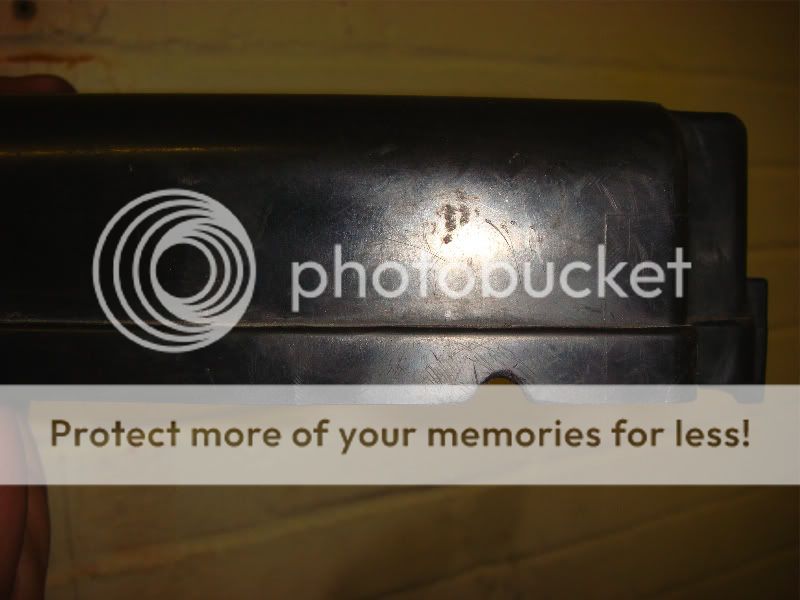

The fuse box lid will have to be notched slightly where the cable enters from the battery:

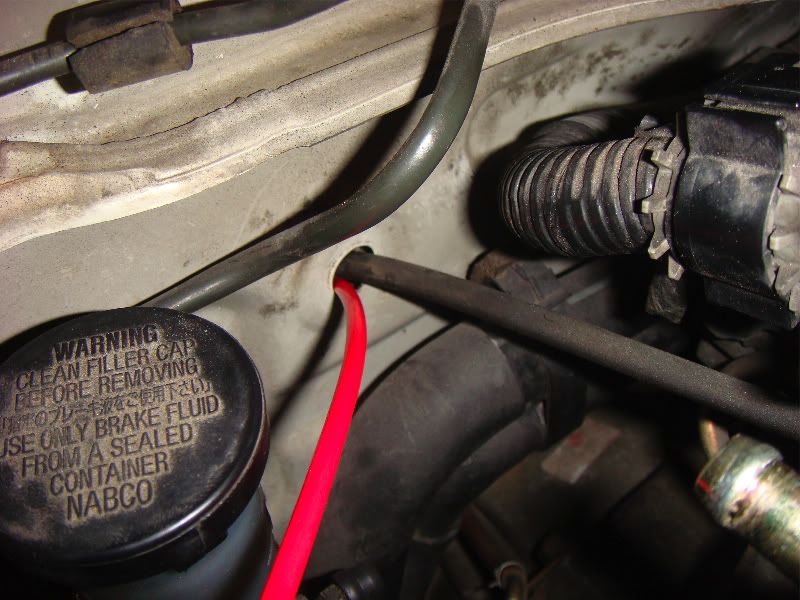

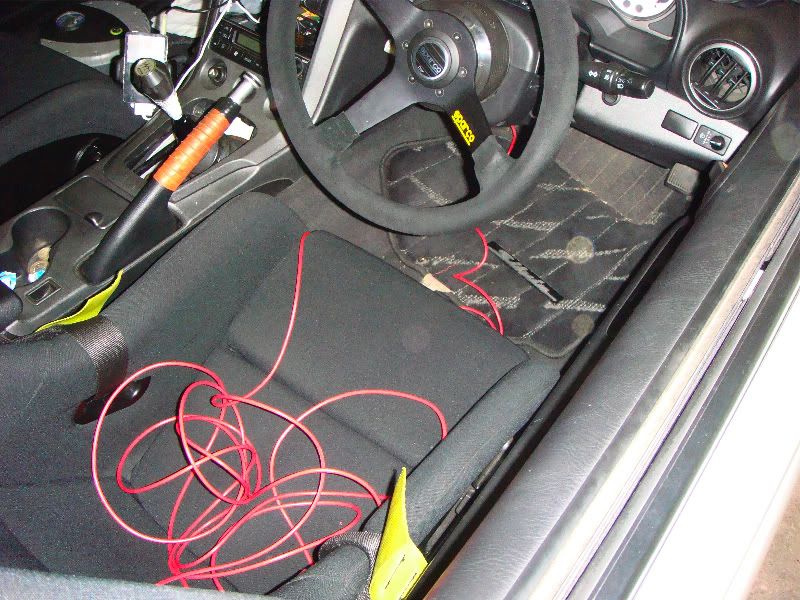

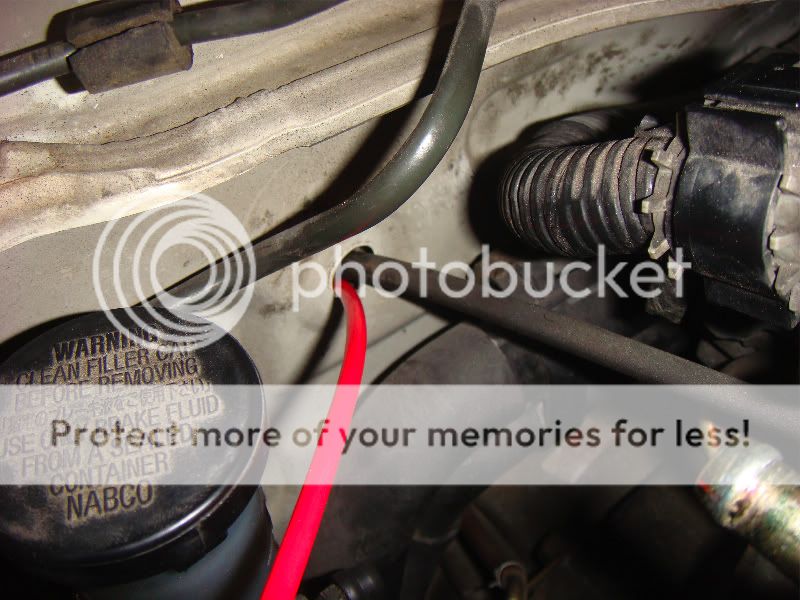

There's a grommet in the firewall near the clutch master cylinder, feed the wire through this and it comes out just above the pedals in the driver's footwell:

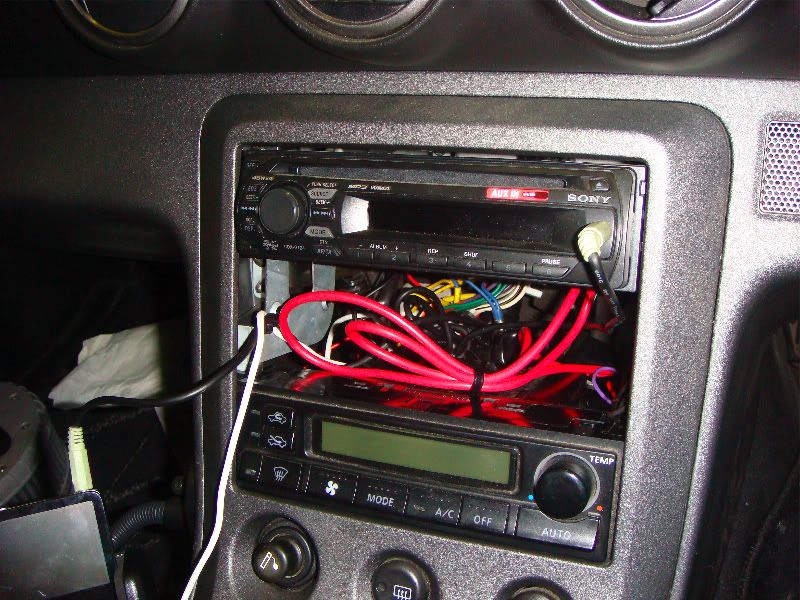

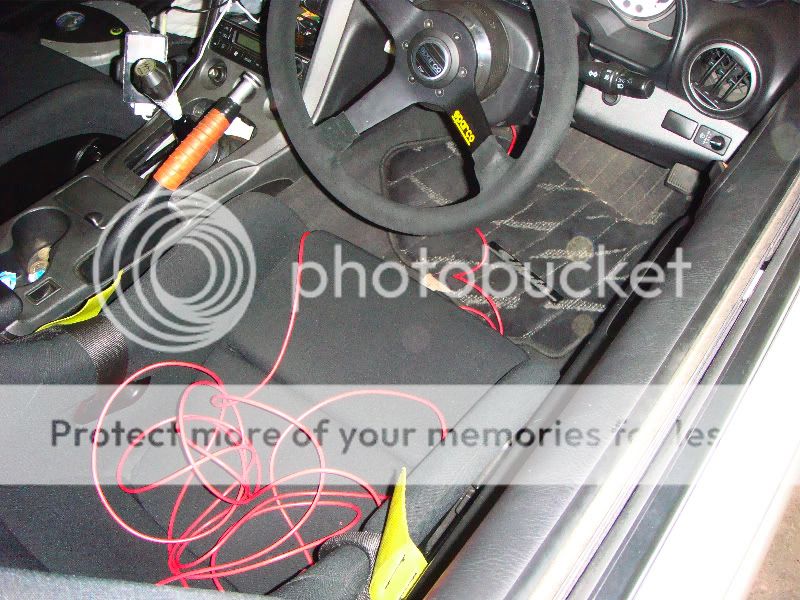

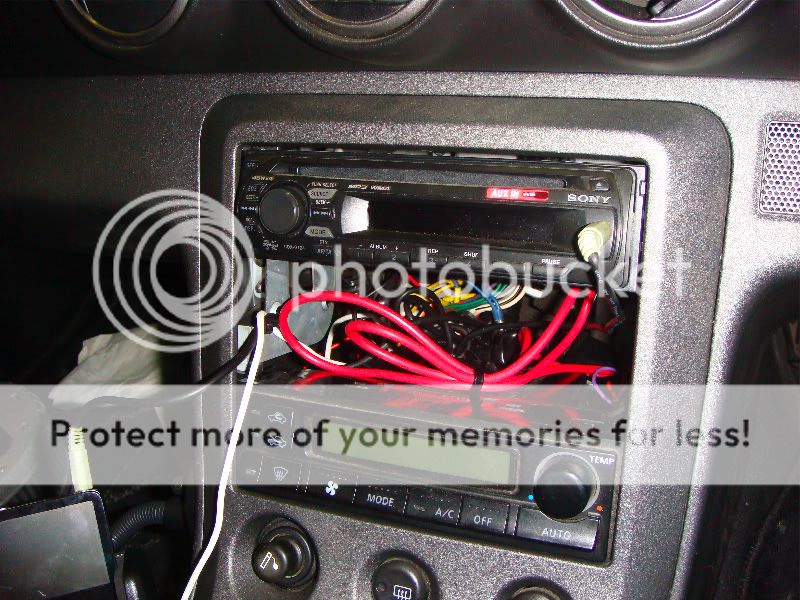

I routed the cable into the console as I want to eventually put a switch there so I can turn the fuel pump off for safety reasons:

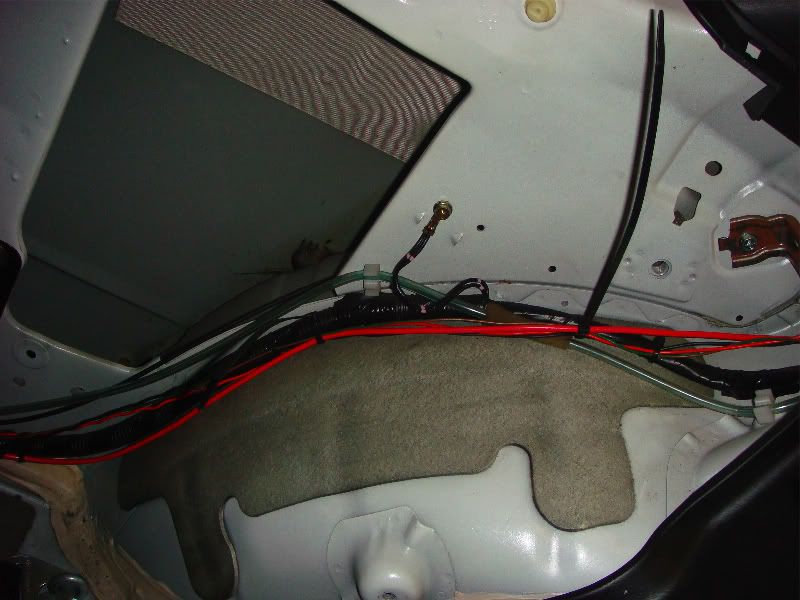

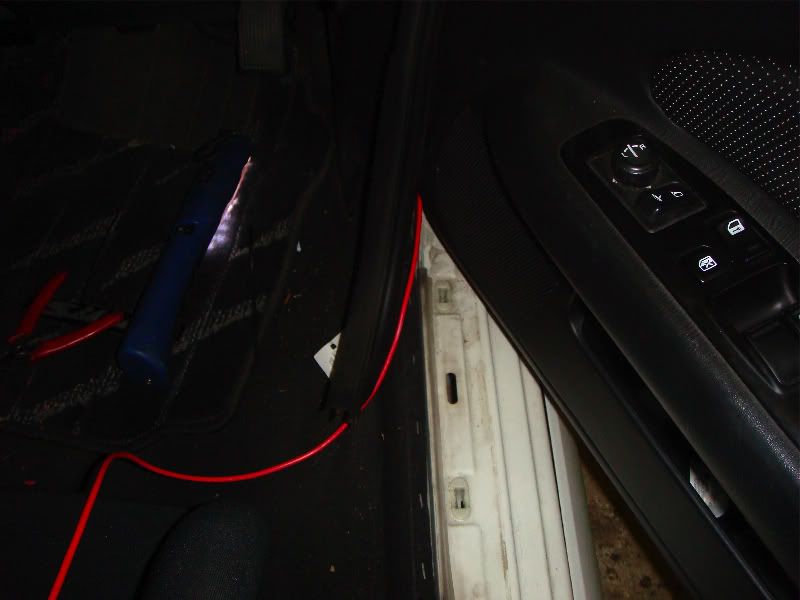

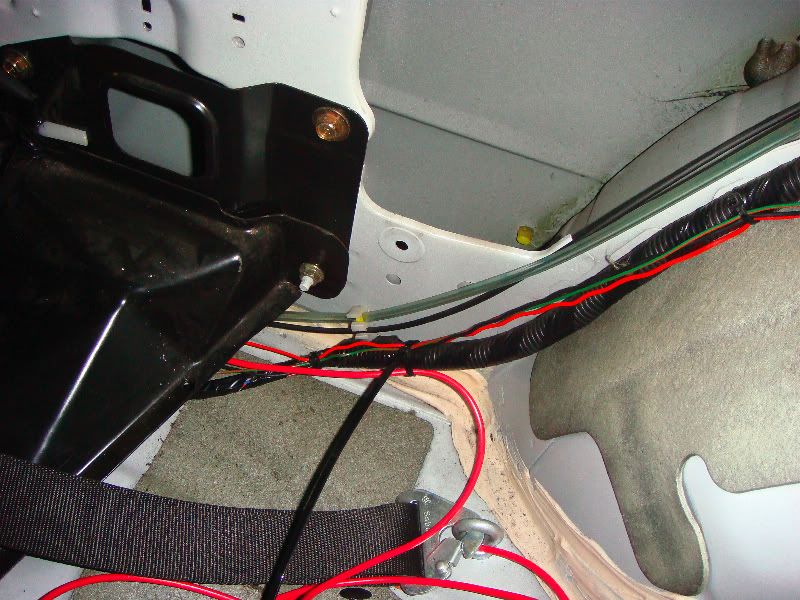

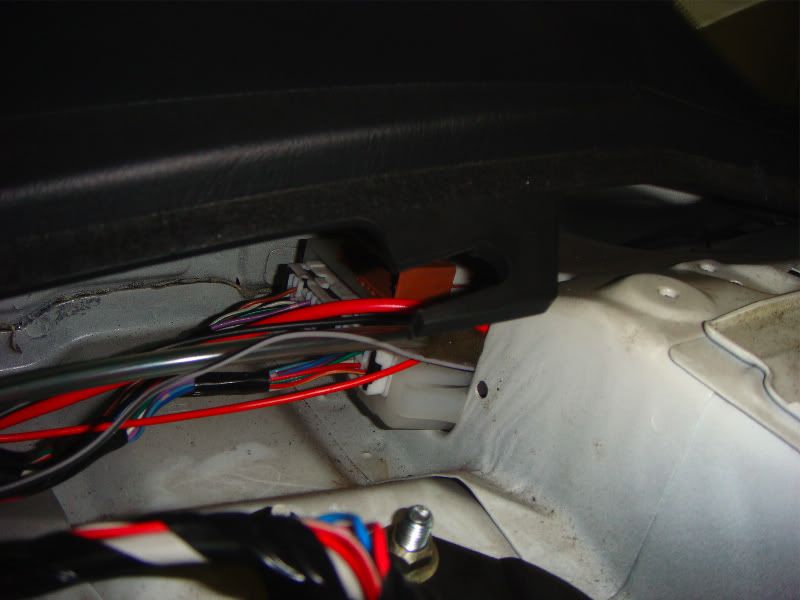

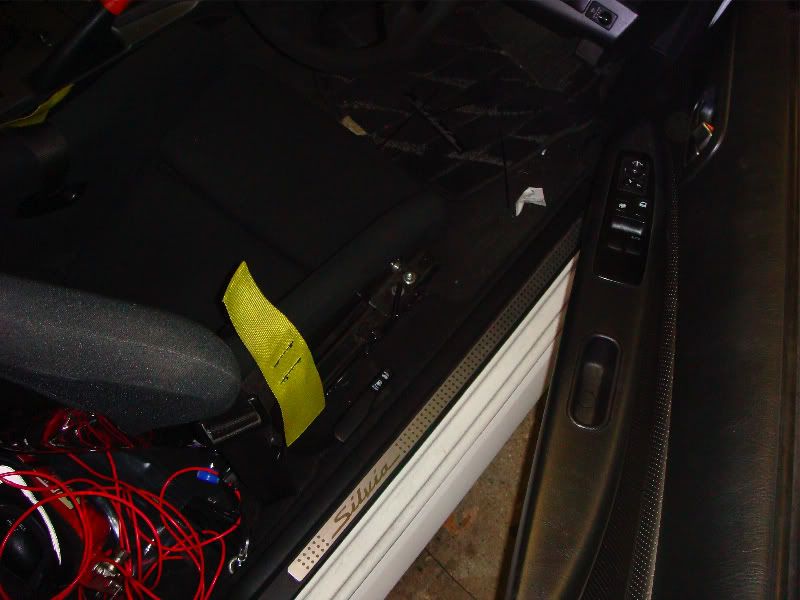

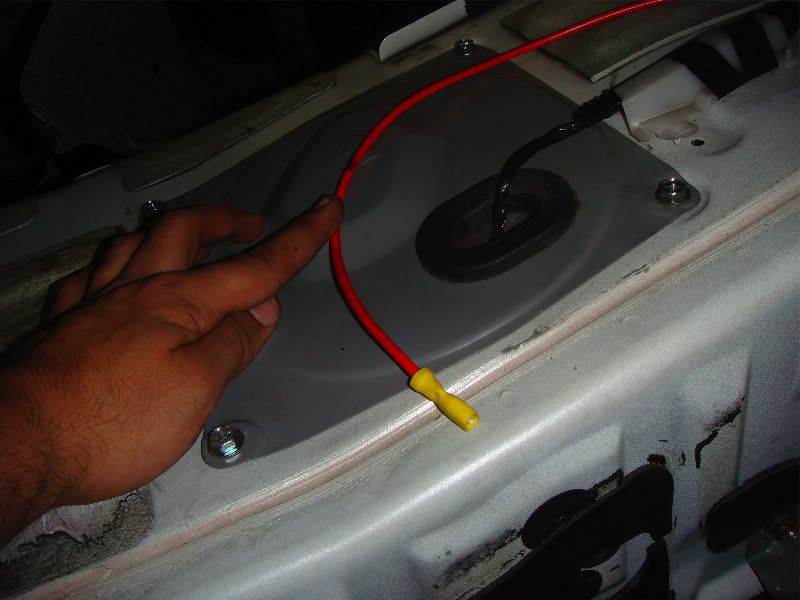

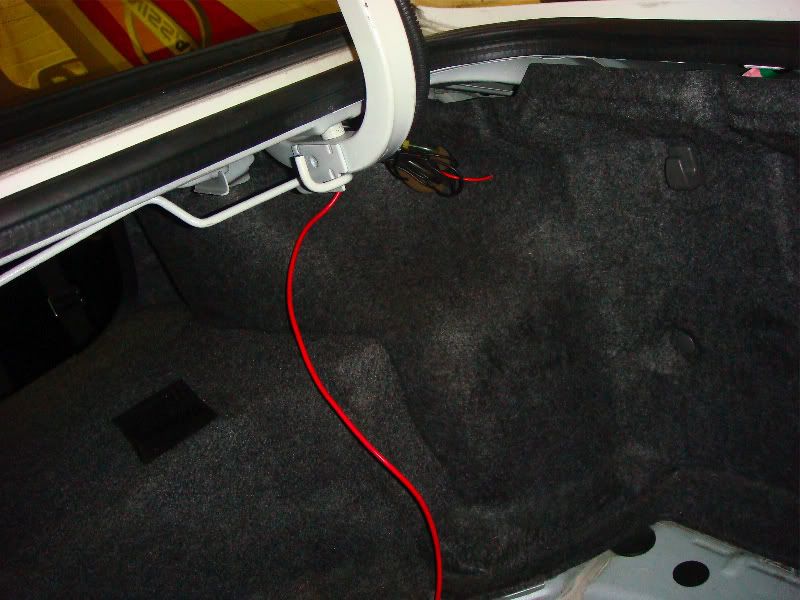

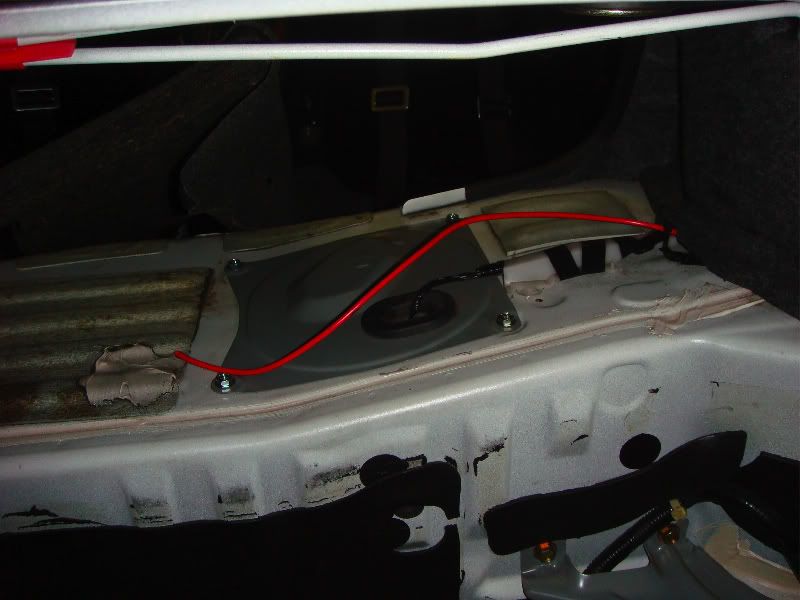

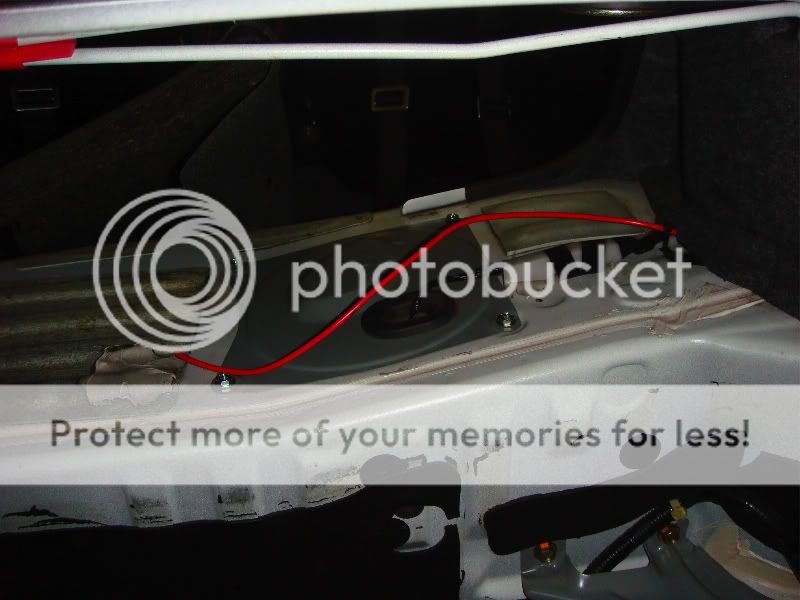

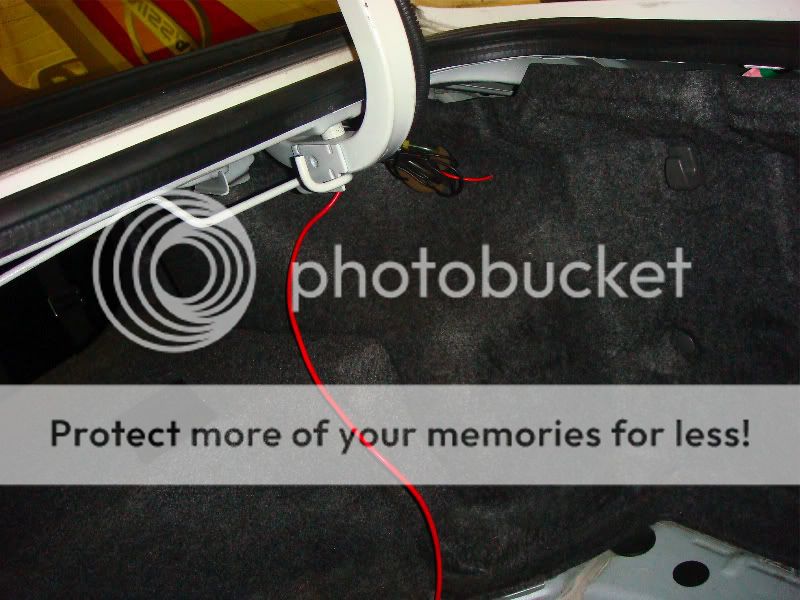

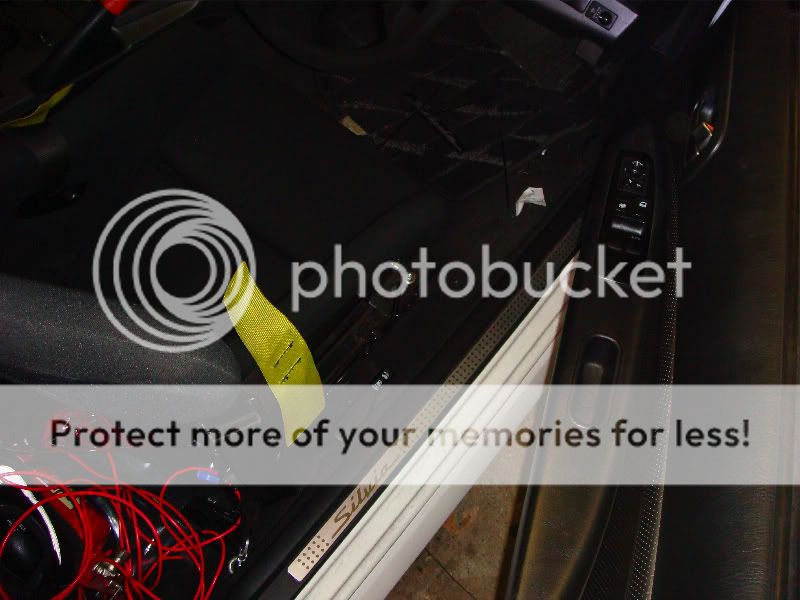

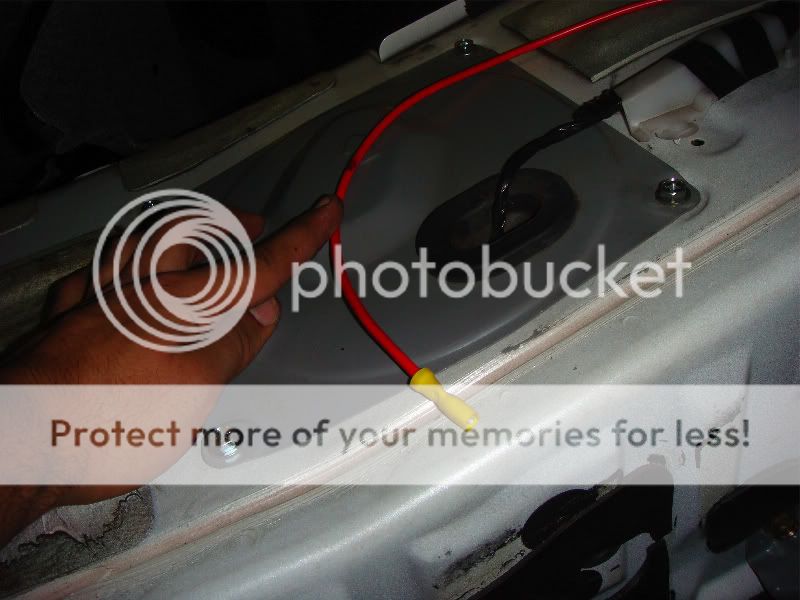

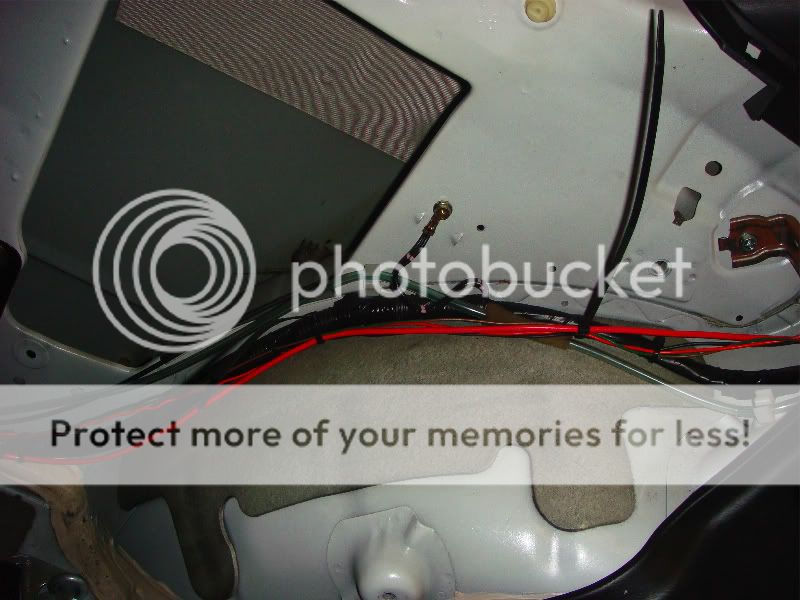

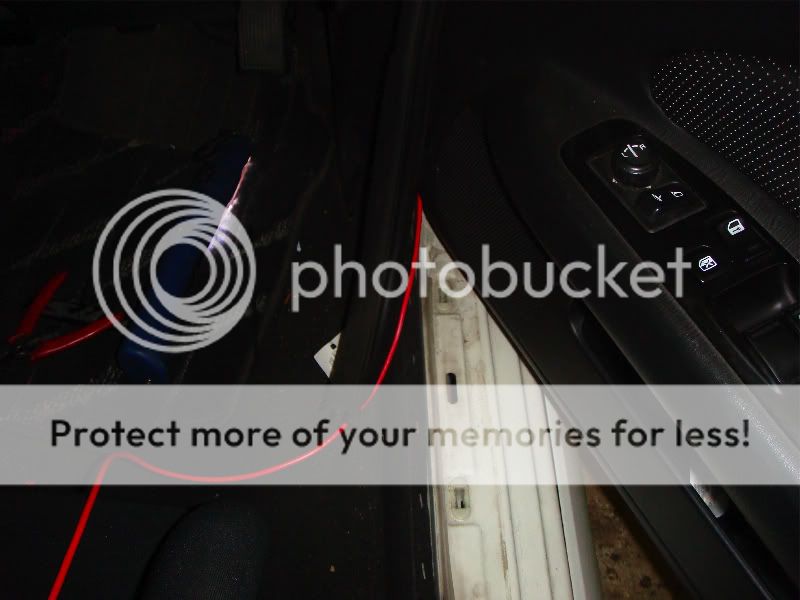

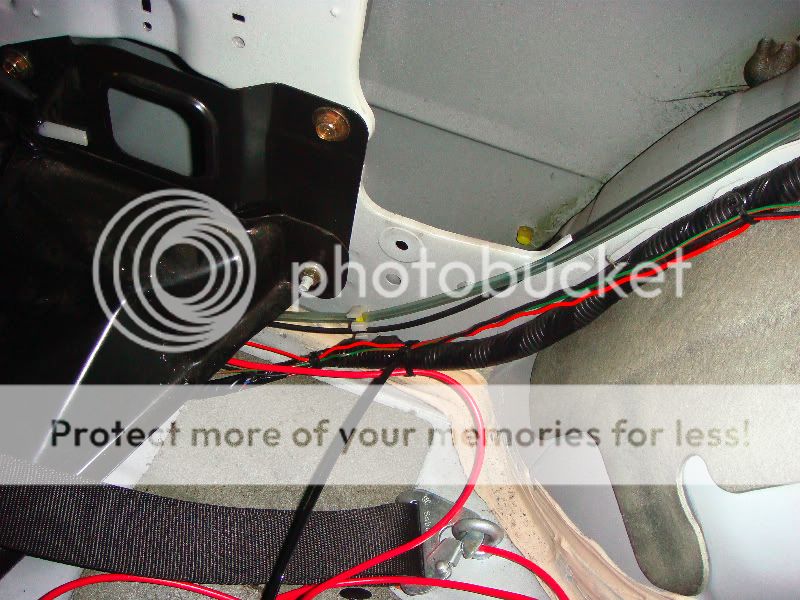

The wiring can then be routed around the bottom of the steering column trim, making sure it doesn't rub against anything, then into the kick panel and down the side of the car under the 'Silvia' trim:
